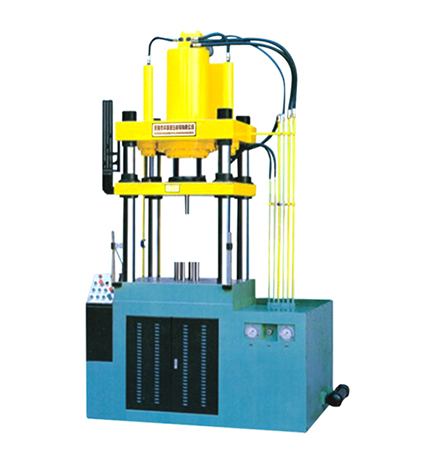

廣州液壓拉伸機

詳細介紹

主要技術參數 Main Technical data
項目 Item		單位 Unit	YB32-55	YB32-75	YB32-100	YB32-120	YB32-150
主油缸 Main oil urn	公稱力Rated force	KN	300	500	600	800	1000
主油缸 Main oil urn	最大行程Biggest route of travel	mm	450	450	450	450	600
壓邊油缸 Press side oil urn	最大壓力Biggest pressure	Mpa	20	20	20	20	20
壓邊油缸 Press side oil urn	最大行程Biggest route of travel	mm	200	200	200	200	300
卸料缸 Unload to anticipate urn	可調壓力Adjustable pressure	Mpa	0-15	0-15	0-15	0-15	0-15
卸料缸 Unload to anticipate urn	最大行程Biggest route of travel	mm	180	180	180	200	230
開口高度Openings high degree		mm	750	750	750	750	950
固定工作臺距地面高度 Fixing the work set is apart from the ground the high degree		mm	860	875	920	950	1250
活動工作臺下行速度 Activity work set next line speed		mm	240	240	240	240	230
活動工作臺拉深速度 The movable work pedestal pulls the deep speed			26	25	23	20	20
活動工作臺回程速度 Activity work pedestal return journey speed			270	250	230	200	230
底缸上升速度 The bottom urn runs high the speed			200	180	170	150	130
工作臺尺寸 Table size	左右Left-right	mm	450	540	600	600	650
工作臺尺寸 Table size	前后Front-back	mm	470	520	600	600	720
機器外形尺寸 Overall dimensions	左右Left-right	mm	1500	1600	1650	1650	1830
	前后Front-back		935	1050	1135	1135	1350
	地面以上高Above floor		2700	2730	2800	2850	3700
電動機功率Motor Power		KW	7.5	7.5	11	15	18.5
機器總重量Weight		T	1.5	1.7	3	4	5
